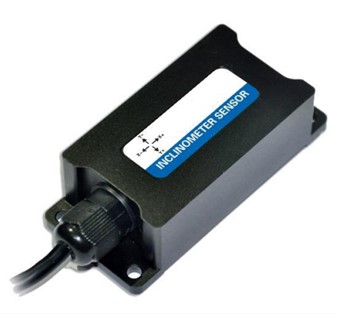

T7000-B HIGH PRECISION CURRENT ANALOG OUTPUT TYPE SINGLE AXIS INCLINATION SENSOR

1. Product characteristics FULL DATA SHEET ON DEMAND T

he T7000-B series is a high-performance current output single axis tilt sensor developed and produced by Micro-Magic Inc based on MEMS technology, used in the field of industrial field control. The measurement range is 0- ± 180 ° (0-360 °), with a maximum accuracy of 0.008 °. It can output standard 4-20mA, 0-20mA, and 0-24mA analog currents, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission.

The product adopts a high-resolution fractional to analog converter, ADI high-precision digital temperature sensor, combined with automatic compensation and filtering algorithms, which greatly reduces errors caused by environmental changes. Easy to install, easy to use, small in size, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, it is suitable for measuring angles in industrial control environments such as surveying and mapping.

2. Product performance - Single axis inclination monitoring - High vibration resistance >20000g - Relative/absolute zero points can be set - Full range accuracy: 0.008° - Output mode: 4~20mA, 0~20mA, (0~24mA optional), RS232 and RS485 available - High resolution: 0.001° - Wide voltage input: DC9~36V - Widely operating temperature: -40～+85℃ - Small size: 78*44*28mm (can be customized) - Protection level: IP67 (IP68 can be customized) 3. Product application - Railway gauge ruler, gauge leveling - Signal towers, high-voltage power poles - Bridge, dam monitoring - Robot tilt monitoring - Precision machine tool horizontal control - Satellite solar antenna positioning - Wind turbine shimmy attitude - Medical equipment - Ship navigation attitude measurement - Angle control of various construction machinery
