1. Product characteristics ( FULL DATA SHEET ON DEMAND )

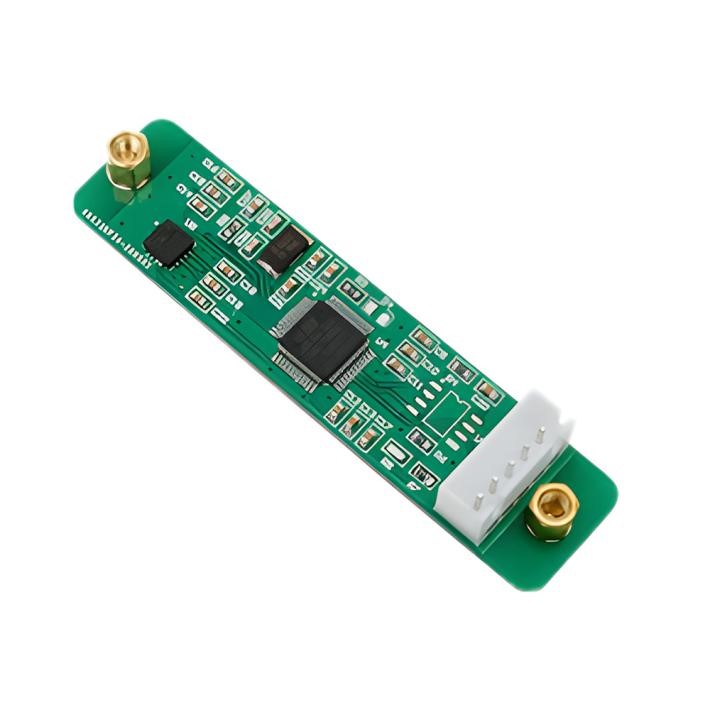

The T7-A series is a new generation of digital small-volume MEMS inclination sensors launched by Micro-Magic Inc. It has a built-in dual-channel earth gravity inclination unit that measures dynamic gravity acceleration and converts it into inclination angle changes.
This allows measurement of the roll and pitch angles of the sensor output relative to the horizontal plane. It has output mode as RS232, RS485, RS422, Modbus, TTL level interface standard optional. Due to the built-in MCU control system, the linearity of the sensor output is corrected twice, which makes up for the decrease in accuracy caused by insufficient correction of the analog type.
- VARIANTS
T7-A Modbus Protocol Dual Axis Inclination Sensor Product Specification (Single Board)
- Product characteristics ( FULL DATA SHEET ON DEMAND )

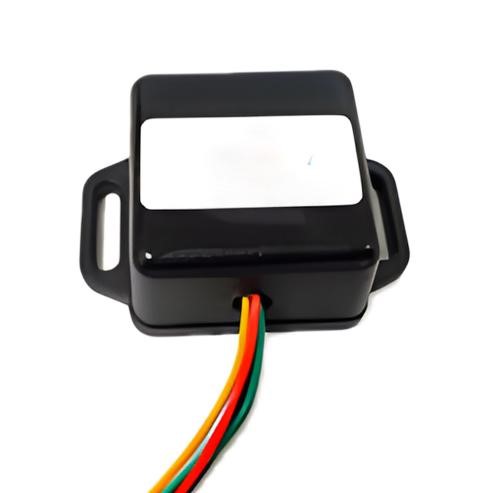

The T7-B series is a digital small volume MEMS photovoltaic tracking inclinometer launched by Micro-Magic Inc, with a maximum measurement angle range of single axis 360 °, accuracy of 0.3 °, and 3.3V TTL output. Due to the built-in MCU control system, the sensor output linearity is corrected twice, compensating for the accuracy decrease caused by insufficient correction in analog models.
-
Product characteristics ( FULL DATA SHEET ON DEMAND )
The T7-B-2 series is a digital small volume MEMS photovoltaic tracking inclinometer launched by Micro-Magic Inc, with a maximum measurement angle range of single axis 360 °, accuracy of 0.1 °.
Due to the built-in MCU control system, the sensor output linearity is corrected twice, compensating for the accuracy decrease caused by insufficient correction in analog models.
-
Product characteristics ( FULL DATA SHEET ON DEMAND )

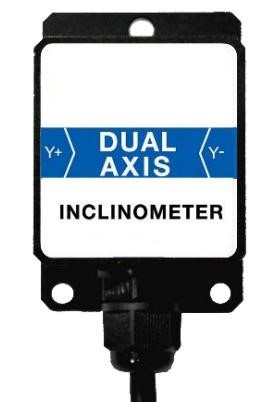

The T7-B-3 series is a MEMS photovoltaic array tilt sensor developed by Micro-Magic Inc; Small size, low power consumption, high precision of 0.01 °. Built in MCU processing unit, high-precision 16 bit A/D converter, through n-order filtering algorithm, the linearity of sensor output is corrected twice, compensating for the accuracy decrease caused by insufficient correction in analog type, and finally outputting X and Y axis tilt values.
-
Product characteristics ( FULL DATA SHEET ON DEMAND )
The T7-C-AC is a low-cost dual axis current output tilt sensor developed by Micro-Magic Inc, mainly targeting application markets with high limitations in size and cost. It has been upgraded and developed, with an output current of 4-20mA and optional 0-20mA. It can also communicate with TTL serial port at the same time, and users can set the output range independently.
-
Product characteristics ( FULL DATA SHEET ON DEMAND )

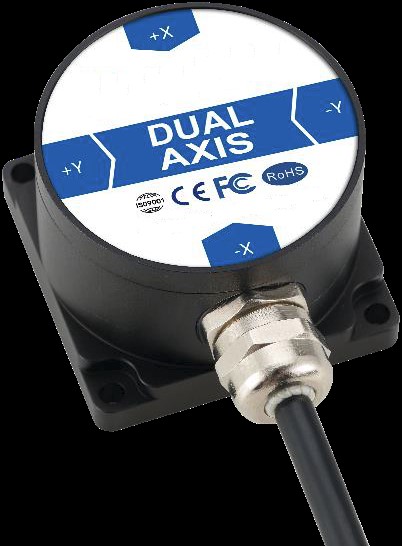

The T7-C-AV is a low-cost dual axis voltage output tilt sensor developed by Micro-Magic Inc, mainly targeting application markets with high limitations in size and cost. It has been upgraded and developed, with output voltages of 0-5V, 0.5-4.5V, and 0-10V to choose from. It can also communicate with TTL serial ports simultaneously, and users can independently set the output range.
-
Product characteristics ( FULL DATA SHEET ON DEMAND )
The T7-C-CA is a CAN2.0，CANopen output dual-axis inclination sensor developed by Micro-Magic Inc for the field of industrial field control.
The product has a built-in micro-electromechanical production process (MEMS) inclination unit, which is small in size, low in power consumption, and has high consistency and stability in the micro-electromechanical process.
The working temperature reaches the industrial level of -40~+85℃, making it a very cost-effective inclination module.
VARIANTS PRODUCT
- T7-C-DI Low Cost Digital Output Dual-Axis Inclination Sensor Product Specification
- T7-C-DI Low Cost Modbus Protocol Output Dual-Axis Inclination Sensor Product Specification
-
Product characteristics ( FULL DATA SHEET ON DEMAND )
The T7-D-AC is a small volume dual axis current output tilt angle sensor developed by Micro-Magic Inc, with output currents of 4-20mA, 0-20mA, and 0-24mA to choose from. Long distance transmission can reach over 2500 meters.
Supports TTL, RS232, RS485 communication, and is equipped with upper computer software. Users can independently set the output range. Adopting the principle of non-contact measurement, it can output the current attitude inclination angle in real time with an accuracy of up to 0.1 °. It is easy to use and does not require retrieving the installation of two surfaces with relative changes.
VARIANTS PRODUCT
- T7-D-AV Voltage Output Dual-Axis Inclinometer Sensor Product Specification
- T7-DB Single Board CAN2.0 Dual-Axis Inclination Sensor Product Specification
- T7-DB Single Board Digital Output Dual-Axis Inclination Sensor Product Specification
- T7-DB Single Board Modbus Protocol Dual-Axis Inclination Sensor Product Specification
-
Product characteristics ( FULL DATA SHEET ON DEMAND)

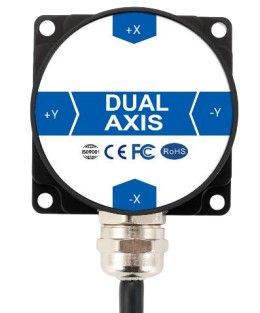

T7-D-CA is a newly upgraded CAN2.0 and CAN open dual axis tilt sensor developed by Micro-Magic Inc for industrial field control. The product is equipped with a MEMS tilt unit (dynamic accelerometer, gyroscope combination), which is small in size, low in power consumption, and has high consistency and stability in microelectromechanical technology. It is a cost-effective tilt module.
- VARIANTS PRODUCT
- T7-D_DI Modbus Protocol Dual-Axis Inclination Sensor Product Specification
- T7-D-DI Digital Output Dual-Axis Inclination Sensor Product Specification
-
-
Product characteristics ( FULL DATA SHEET ON DEMAND )
T7-D-DI Modbus protocol is a newly upgraded digital small volume MEMS tilt sensor launched by Micro-Magic Inc. It has a built-in dual channel earth gravity tilt unit and measures static gravity acceleration and dynamic angular velocity through a combination of accelerometers and dynamic gyroscopes, converting them into tilt angle changes. Thus, the tilt and pitch angles of the sensor output relative to the horizontal plane can be measured.
- VARIANTS PRODUCT
- T7-D-DI Digital Output Dual-Axis Inclination Sensor Product Specification
