Product characteristics ( FULL DATA SHEET ON DEMAND )
The U3600 series products are IMU/VRU/AHRS sensors composed of array MEMS-IMU, magnetometer, and barometer, and are equipped with self-developed adaptive extended Kalman filtering, IMU noise dynamic analysis algorithm, and carrier motion state analysis algorithm, which can meet the accuracy of attitude angle under high dynamic conditions and reduce heading angle drift.
Every sensor undergoes fine compensation including temperature, zero bias, scaling factor, and cross axis before leaving the factory. The U3600 series sensors transmit data through a USB interface and have rich user configurations. A multifunctional upper computer (GUI) can help quickly evaluate products, including but not limited to module configuration, data display, firmware upgrade, data recording, etc.
-
Product performance
-
Heading angle enhanced array IMU
-
Factory -40 - +85℃ full temperature compensation, calibrated scale factor, cross axis, zero bias
-
Zero bias instability of gyroscope 2.5°/h
-
Zero bias instability of the accelerometer can reach 30ug
-
Fully symmetrical design
-
Multi-functional IO output signals (including but not limited to synchronous input/output, alarm, etc.)
-
Excellent vibration resistance
-
Integrated temperature sensor
-

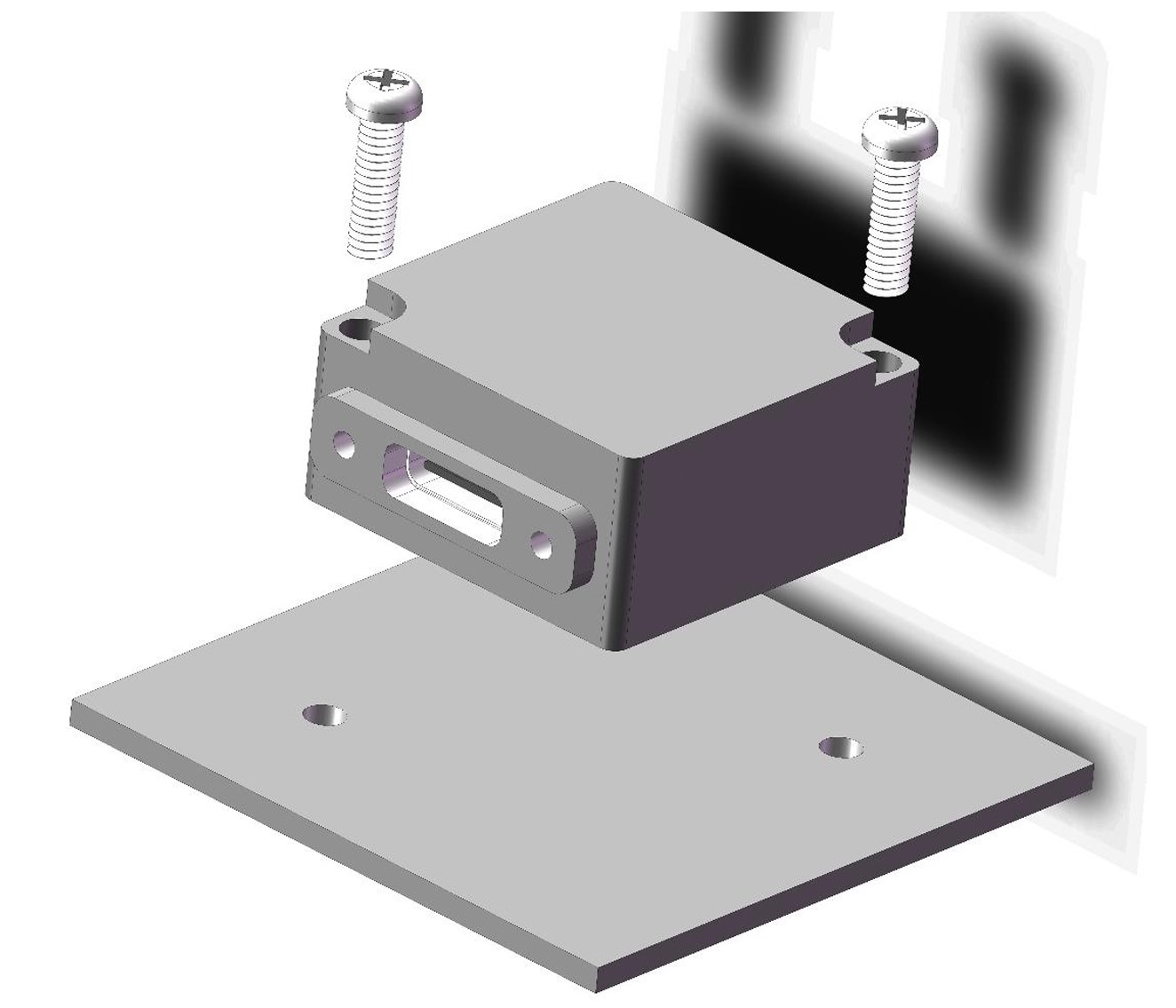

Small volume independent shell packaging, easy to integrate
-
RoHS and CE certification
|
-
Adaptive Extended Kalman Fusion Algorithm, up to 1000Hz output, low latency
-
Excellent dynamic tracking performance and good vibration suppression
-
has excellent suppression effect on linear acceleration
-
Start time<1s
-
USB interface for easy using
-
No need for external command configuration, directly output data
-
Rich user configuration instructions
-
Multi-functional GUI for easy operation
-
Supports various routines such as ROS, C, QT, etc
|
-
Product application
-
Low speed unmanned driving robot
|
|
|
