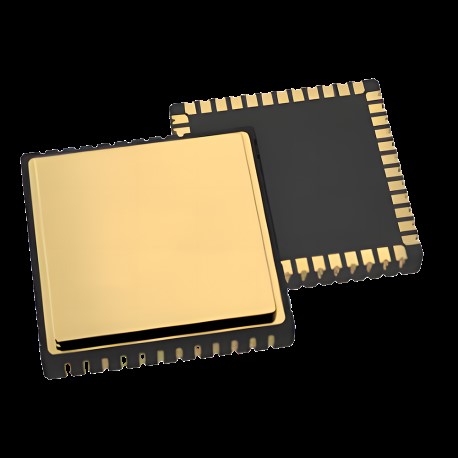

ACM-1900 HIGH PRECISION MEMS SINGLE AXIS ACCELEROMETER

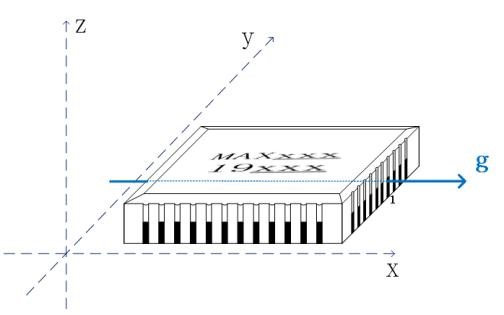

1. Product parameter matrix ( Full technical data sheet on request) Parameter Acceleration Acceleration Acceleration Acceleration Unit Model A B C D Axial X (parallel to the surface) Range 2-10 30-50 70-100 150-200 g Bandwidth (adjustable) 100 100 100 100 Hz Zero bias stability (10s,1σ) <20 <50 <150 <250 ug Monthly repeatability 100-300 300-500 1000 1000 μg Zero bias temperature coefficient <10 <50 <100 <200 μg/° Zero bias temperature hysteresis <0.5 <1 <3 <5 mg Scale nonlinearity <500 <1000（@30g） <1000 （@370g） <2000 （@150g） ppm Scale temperature coefficient 10 10 10 10 ppm/° Second-order nonlinear coefficient <100 <100 <100 <100 μg/g2 Scale 4000000-800000 200000-150000 100000-80000 50000-40000 Lsb/g Resolution 5 10 25 50 μg Starting time <1 <1 <1 <1 s Sampling frequency (adjustable) 2000 2000 2000 2000 Hz Shocking (on power) 10000 10000 10000 10000 g Shocking (off power) 20000 20000 20000 20000 g Vibration rectification error (6grms) <0.4 <0.15 <0.05 mg/grms Working temperature -45 ~ 85 -45 ~ 85 -45 ~ 85 -45 ~ 85 ° Supply voltage 5±0.25 5±0.25 5±0.25 5±0.25 V Electric current <15 <15 <15 <15 ma

Codice SKU17886
