1. Product characteristics

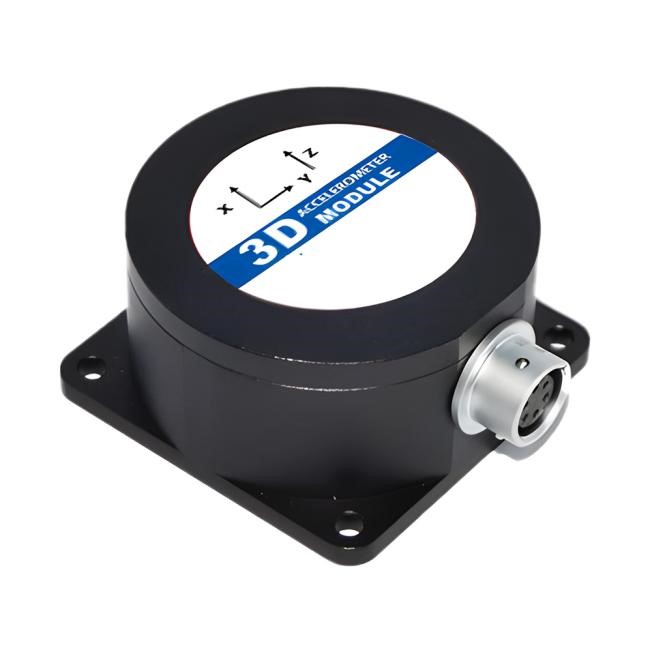

The ACM-200 tri-axis accelerometer is a widely used acceleration sensor series products produced by Micro-Magic Inc with Swiss patented technology, which can be used in various fields such as vibration testing and impact testing. The product adopts output interface with 4~20mA and 0~20mA. Different address codes can be set, and multiple sensors can be connected in series for long-distance measurement and data analysis at multiple points. ACM-200 is a single crystal silicon capacitive sensor, consisting of a silicon chip that has undergone micro mechanical processing, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor.
The product has a small size, low power consumption, calibrated, fixed structure, and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection against overvoltage. The long-term stability and typical deviation of the scalel factor within the full range are less than 0.1%. This series of products has the characteristics of fixed structure, low power consumption, and excellent bias stability, ensuring outstanding output reliability.
2. Product performance
- Tri-axis (X, Y, Z) optional - Full range accuracy: 0.01g;
- High resolution: 0.001g
- Measuring range: ±1g/±2g/±4g/±8g/±16g/±32g/±40g - Output mode: 4~20mA, 0~20mA optional
- Voltage input: DC 9~36V - Widely operating temperature: -55～+100℃
- Excellent deviation stability and vibration resistance - Size: (60*59*29mm) (can be customized)
- Protection level: IP67 (IP68 customized)
3. Product application
- Crash records, fatigue monitoring and prediction - Satellite solar antenna positioning
- Ship navigation attitude measurement - Unmanned aerial vehicles
- Roadbed analysis and high-speed railway fault detection - Transportation system monitoring
|
