| 1. Product characteristics

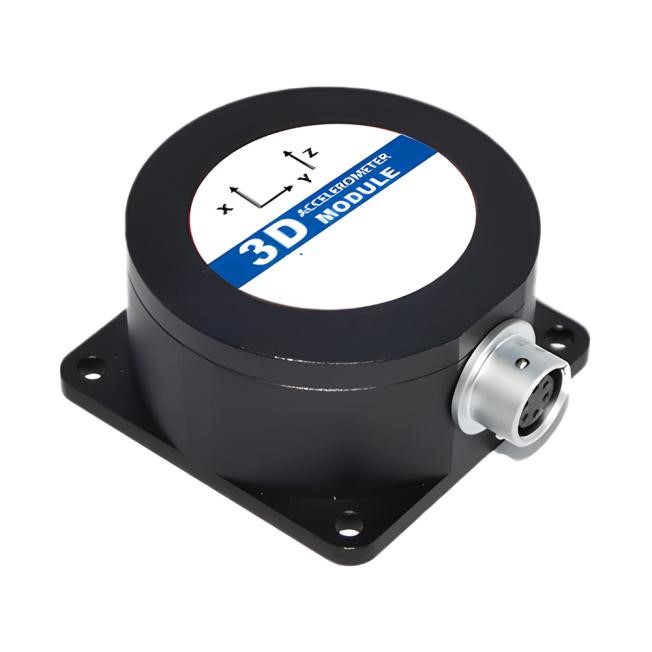

The ACM-100 tri-axis accelerometer is a widely used acceleration sensor series products produced by Micro-Magic Inc with Swiss patented technology, which can be used in various fields such as vibration testing and impact testing. The product adopts digital interface output, with RS232, RS485, TTL, Modbus protocol, and RS422 optional. Different address codes can be set, and multiple sensors can be connected in series for long-distance measurement and data analysis at multiple points. ACM-100 is a single crystal silicon capacitive sensor, consisting of a silicon chip that has undergone micro mechanical processing, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor.
The product has a small size, low power consumption, calibrated, fixed structure, and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection against overvoltage. The long-term stability and typical deviation of the proportional factor within the full range are less than 0.1%. This series of products has the characteristics of fixed structure, low power consumption, and excellent deviation stability, ensuring outstanding output reliability.
Parameter Conditions ACM-I00-2 ACM-I00-8 ACM-I00-40 Unit
Measuring range ±2 ±8 ±40 g
Bias calibration <2 <5 <10 mg
Measuring axis axis X, Y, Z X, Y, Z X, Y, Z
Zero bias stability (yearly) 1.5(<5) 7.5(<25) 22(<75) mg
Resolution threshold @Hz <1 <5 <15 mg
Bias temperature coefficient -55～100° 0.1 0.5 1.5 mg/℃
Bandwidth 0~≥400 0~≥400 0~≥400 Hz
Resonance frequency 1.6 6.7 6.7 KHz
Output rate 5Hz, 15Hz, 35Hz, 50Hz can be set
(RS485 does not have this function)
Output signal RS232/RS485/RS422/TTL optional
Reliability MIL-HDBK-217, Level 2
Impact resistance 20000g, 2ms, 1/2sine
Anti-vibration 10grms、10～1000Hz
Waterproof level IP67
Cable Standard 1.5m length, wear-resistant, oil-proof, wide temperature, shielded cable 5*0.2mm2
Weight 180g (excluding packaging box)
Connector 6-pin aviation plug
Capacitive loading 1000
2. Product performance
- Tri-axis (X, Y, Z) optional - Full range accuracy: 0.01g;
- High resolution: 0.001g
- Measuring range: ±1g/±2g/±4g/±8g/±16g/±32g/±40g - Output mode: RS232/RS485/TTL/RS422/Modbus optional
- Voltage input: DC 9~36V (DC 5V can be customized) - Widely operating temperature: -55～+100℃
- Excellent deviation stability and vibration resistance - Size: (60*59*29mm) (can be customized)
- Protection level: IP67 (IP68 customized)
3. Product application
- Crash records, fatigue monitoring and prediction - Satellite solar antenna positioning
- Ship navigation attitude measurement - Unmanned aerial vehicles

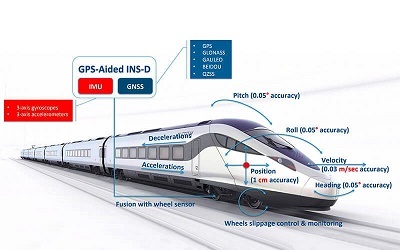

- Roadbed analysis and high-speed railway fault detection - Transportation system monitoring
|
