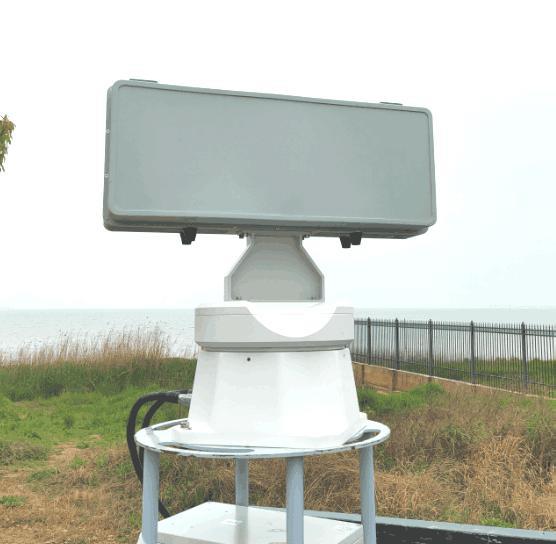

Ground Surveillance Radar GSR 223D-1X / X band

Ground Surveillance Radar GSR 223D-1X / X band

Working system Phased Array (Azimuth Phase Scanning)
Working mode Pulse Doppler
Working frequency X band（9.4GHz-9.6GHz / 5working frequency point）
Max. detection range
≥1.5km（Pedestrians，RCS0.5～1m2）
≥3.0km（Vehicles, RCS2～5m2）
Min. detection range ≤ 150m
Detection angle
Azimuth coverage： 360°
Elevation coverage：≥ 40°
Detection speed 0.5m/s～30m/s
Accuracy of measurement
Azimuth measurement accuracy：≤0.8°；
Elevation measurement accuracy：≤0.8°；
Distance measurement accuracy：≤5m；
Data rate ≥0.25 times/s
Targets of simultaneous processing ≥100
Data interface RJ45，UDP Protocol 100 MB Ethernet
Power supply & Consumption
Power consumption：≤ 200W（in total）
Radar array：≤110W；
Turntable：≤80W；
Distribution control box：≤10W
Working voltage：AC200V～240V
Reliability MTBCF：≥ 20000h
Maintainability MTTR：≤1h
Working environment
Working temperature：-40℃～+55℃
Storage temperature：-45℃～+65℃
With rainproof, dustproof and sand control measures
Protection grade：IP65
Dimension
Radar array + PTZ： ≤710mm×700mm×350mm;
Distribution control box：≤440mm×280mm×150mm；
Weight
Radar array：≤20.0kg
Turntable：≤22.0kg
Distribution control box：≤8.0kg

Air Surveillance Radar
ASR 223D-1X2K-3D
This air surveillance radar is used for the detection of low altitude, small and slow targets,
as well as pedestrians and vehicles. It can apply warning and target indication, and can
provide real-time and accurate target trajectory information.
Parameters
Working system
Working frequency
Detection range
Azimuth coverage
Elevationcoverage
Detection speed
Azimuth accuracy
& Elevation accuracy
Data rate
Data interface
Power supply
Working temperature
Weight
223D-1X2K-3D
Phased array system
(azimuth machine scanning+pitch phase scanning)
X Band
100m~2.0km
